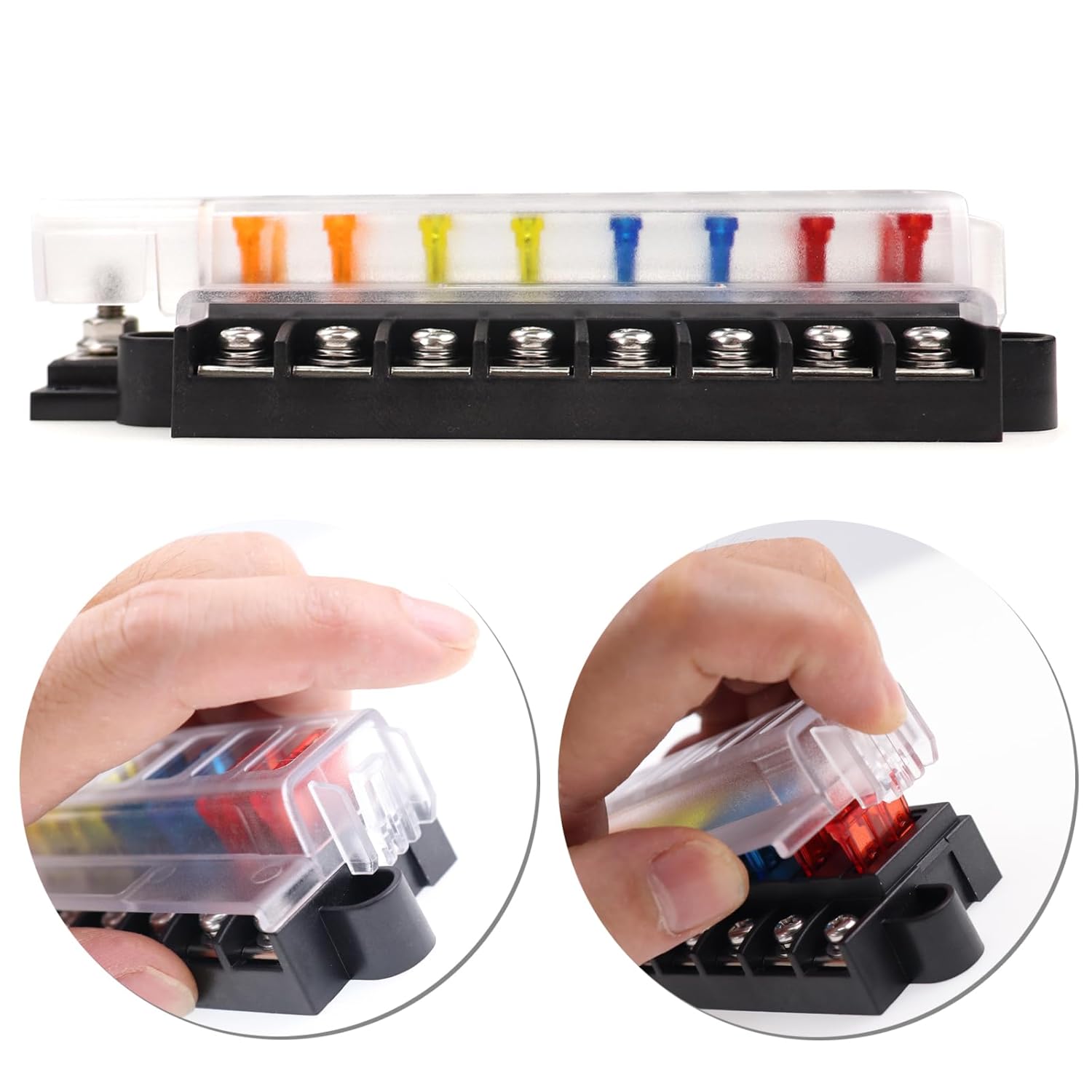

8-Circuit Fuse Block Universal Power Distribution 8 Way Fuse Holder #5046 ST Blade Fuse Block for Vehicles, Boats
Product details
| Management number | 218181493 | Release Date | 2026/05/03 | List Price | US$9.60 | Model Number | 218181493 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Other Parameters: Maximum Voltage:32VDC Rated current:100A Mounting:#8 Screw (M4) Terminal Stud Torque:24 in-lb Screw Terminal Torque:18 in-lb Screw terminal type:#8-32 screws with captive star lock washer Terminal stud size:#10-32 Size:3.67*1.69*0.79inch Packaging Includes: 8 x ST blade fuses 1 x 8 8 Way Fuse Block After-sales Service: If there is any problem with the product,please do not hesitate to contact us,we will help you solve the problem.
- The 8-way fuse holder is equipped with a separate fuse for each circuit, providing protection against electrical overload and short circuit, and reducing the risk of damaging connected devices or equipment.
- Provid fuse: 2 each of 5A, 10A, 15A, 20A; 100A Block Max, 30A per circuit; 12 & 24 VDC, maximum voltage 32V; Usable with ATO and ATC fuses.
- This power distribution panel fully integrates power distribution, allowing multiple devices or systems to be powered from a single source. And allow the wires to enter from one side to maximize space.
- ABS material, when used for ignition protection, the cover is safe and meets the insulation requirements of ABYC/USCG. It also complies with ISO 8846 and SAE J1171 for use in gasoline engine compartments.
- Designed for a wide range of vehicles and marine applications, offering flexibility in wiring accessories.
| Color | Black |
|---|---|
| Model | B0F7P88MZ2 |
| Brand Name | VOZINMOST |
| Part Number | ZT-8 Circuit Fuse-01 |
| Manufacturer | VOZINMOST |
| Material Type | Plastic |
| Mounting Type | Screw Mount |
| Connector Type | IDC, Screw |
| Current Rating | 100 Amps |
| Number Of Poles | 8 |
| Specification Met | Iso 8846, Sae J1171 |
| Number Of Contacts | 8 |
| Number of Positions | 8 |

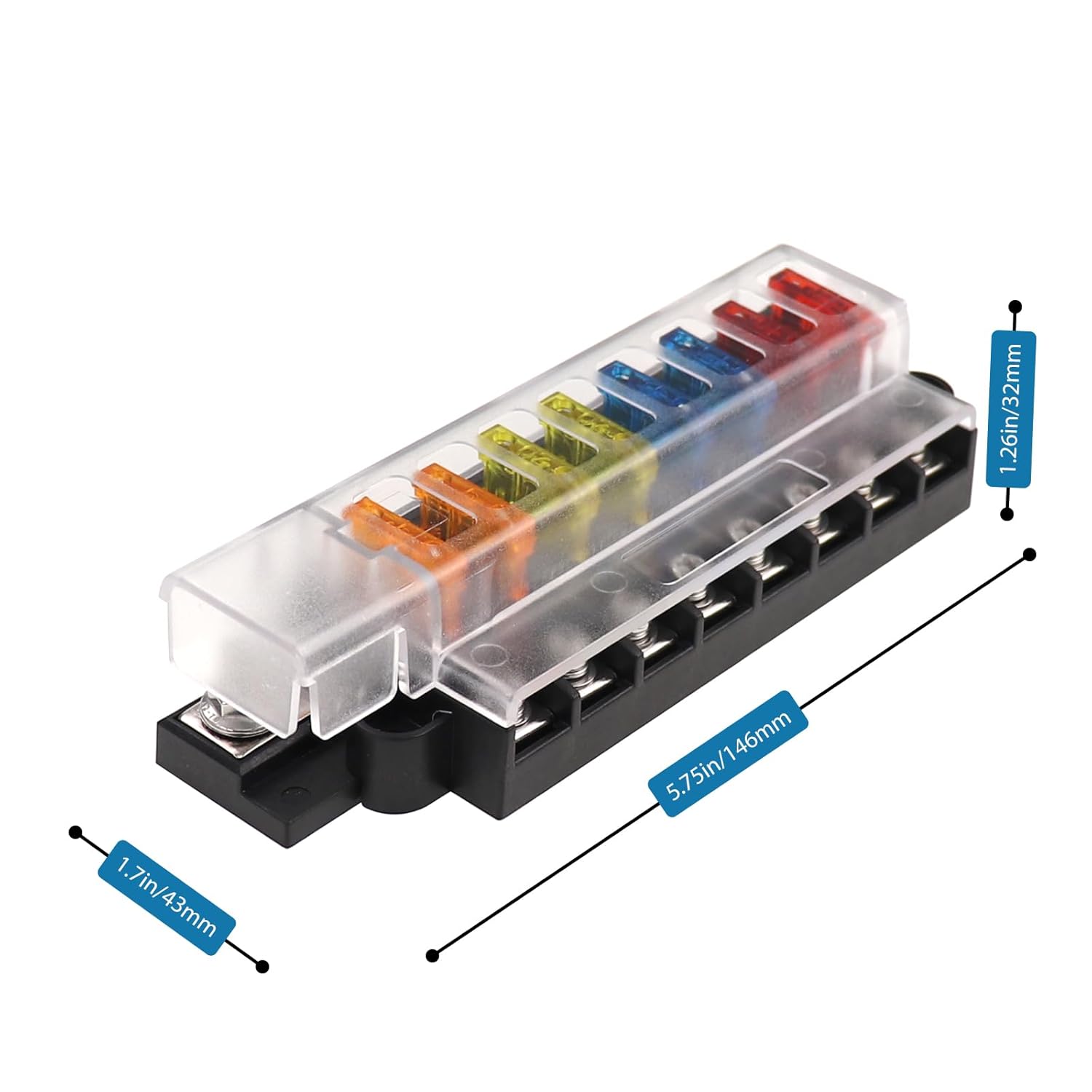

| Item Dimensions W x H | 3.67"W x 0.79"H |
