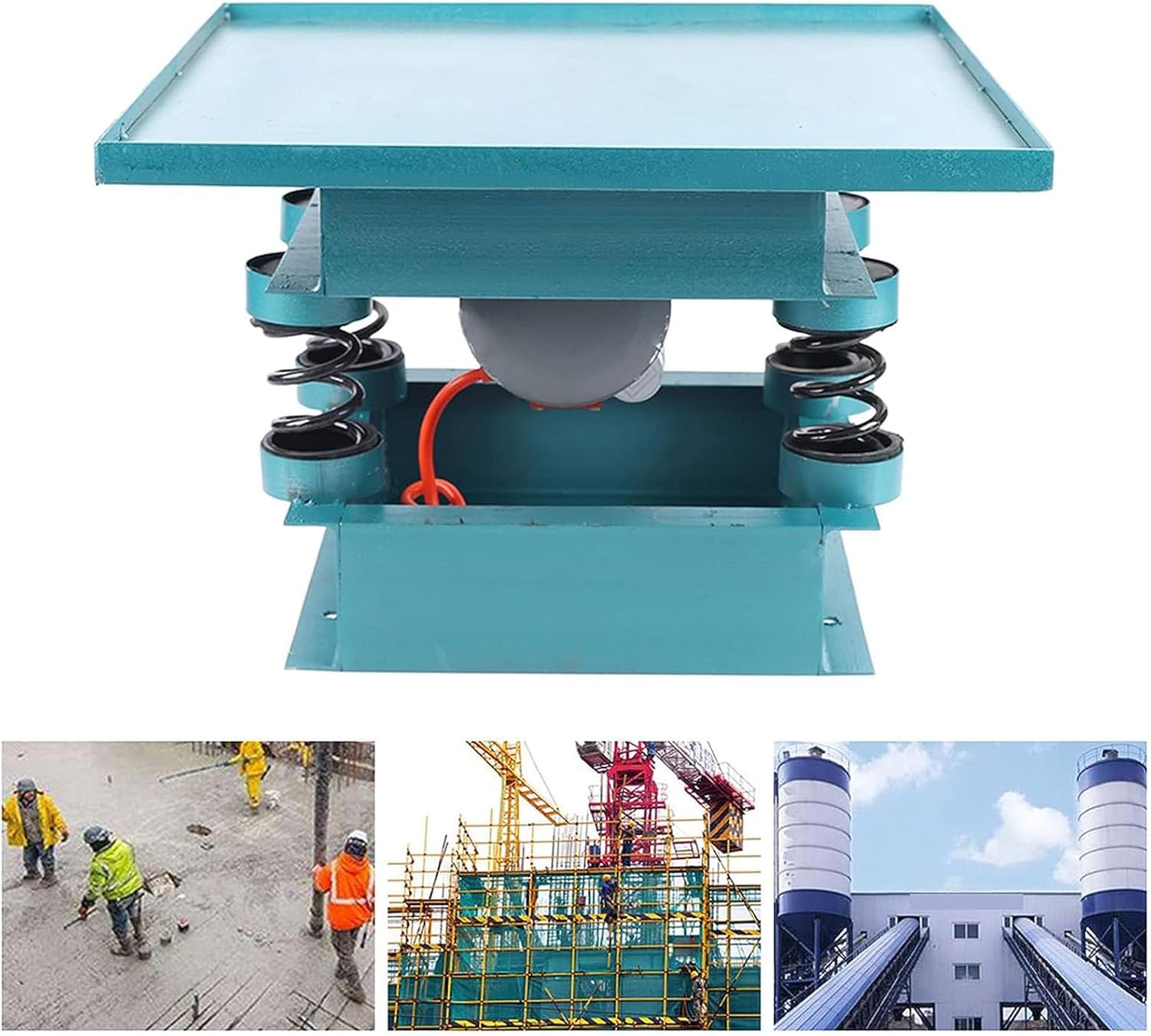

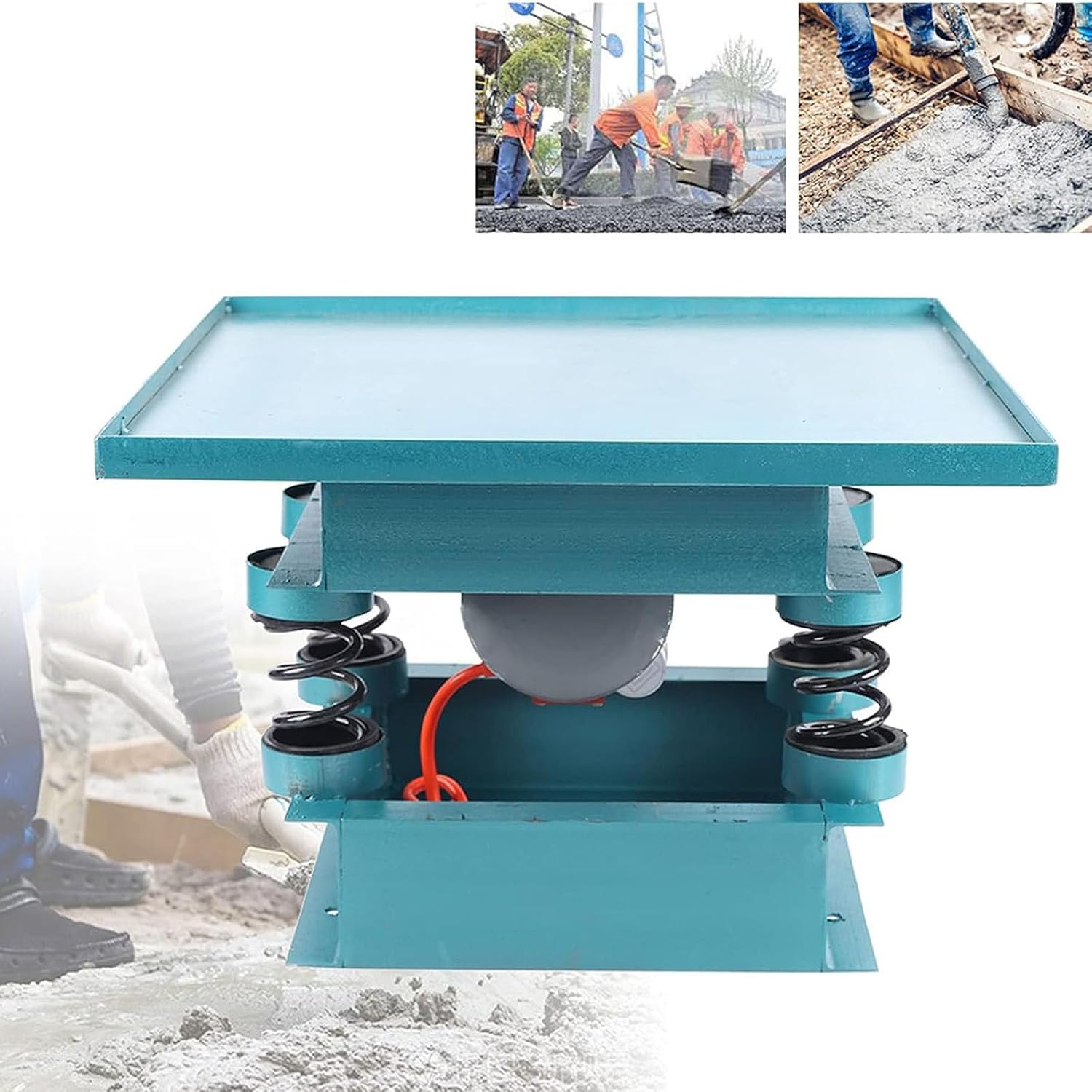

Electric Concrete Vibrating Table, Concrete Vibration Platform Stainless Steel, 220v Flat Plate Vibrator, Industrial Concrete Vibrator, Shaking Test Table Vibration

● Specifications:Material: cold rolled plate + copper core + cast ironVibration frequency: 2860 times/minAmplitude: 0.3-0.6mmPower: 0.55KWLoad: 150kgVoltage: 220VProduct size: 50x50x35cmPackage size: 52*52*49cmNet weight: about 23 kg● Package list:1* Concrete vibration platform● Installation and maintenance:Ⅰ Before the vibration table is installed, the foundation should be laid first. When laying the foundation, the upper plane should be leveled, and the fixing bolts should be buried according to the bolt holes of the bottom beam, and then installed. The fixing bolts must be tightened during installation.Ⅱ Before installing and testing the vibration table, drive for 3-5 minutes, then stop and check all the installation bolts. If they come loose, they must be retightened before use.Ⅲ During the vibrating process of the vibrating table, concrete products should be firmly fixed on the surface of the vibrating table, and the products to be vibrated should be placed symmetrically with the table to balance the load. Design and prepare yourself.Ⅳ The bearings of the vibrator should be checked frequently, disassembled and washed regularly, and the lubricating oil should be replaced to keep the bearings well lubricated and prolong the service life of the vibrator.Ⅴ The vibrating table must have a reliable ground wire to ensure safety.● Precautions:In order to meet the installation needs of different customers, our motors do not include plugs.

• 【550W High Power】This professional concrete vibrating table adopts 550W high-power high-quality copper core motor, which has powerful and durable performance, stable and long life, and is not easy to break down. The thickened copper wire design is more stable and worry-free.
• 【Thickened Table Top Treatment】The surface of the vibrating table is made of thickened steel, and the baking paint technology is used to prolong the service life of the vibrating table. Stirrer bottom frame, welding is more stable and authentic.
• 【Thickened Spring Design】The thickened spring not only has better hardness than ordinary springs, but also has a better vibration effect, and the thickened spring is more durable.
• 【High Quality】The concrete vibrating table is made of cold-rolled plate and cast iron, with low noise and stable operation. High-quality materials ensure continuous production and high product stability.
• 【Wide Range of Applications】Our vibration motors are not only widely used in daily concrete work, but also widely used in mining, metallurgy, coal, electric power, construction, chemical, machinery, food and other environments.
