Linear Stage 4 Axles 60 x 60mm Trimming Platform Bearing Tuning Slide Table Directions Manual,High Efficiency(90 x 90 mm)
Product details
| Management number | 234117625 | Release Date | 2026/06/27 | List Price | US$283.78 | Model Number | 234117625 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Model: LT60-LMWorkbench Size: 60 x 60 mm (2.36 inches)Direction of Movement: X, Y, Z, R axisTravel: XY: ± 6.5 mm / 0.26''Itinerary: Z: 10 mm / 0.39''R Axis: 360° (±5° fine-tuning)Load: 29.4 N (3kgf)Minimum Scale: 0.01 mmAccuracy: 0.03 mmParallel: 0.03 mmMaterial: Aluminum AlloyPackage Content1 x XYZR Axis Linear Stage Table90 x 90 mm SpecificationsModel: LT90-LMWorkbench Size: 90 x 90 mm (3.54 inches)Direction of Movement: X, Y, Z, R axisTravel: XY: ± 6.5 mm / 0.26''Itinerary: Z: 10 mm / 0.39''R Axis: 360° (±5° fine-tuning)Load: 29.4 N (3kgf)Minimum Scale: 0.01 mmAccuracy: 0.03 mmParallel: 0.04 mmMaterial: Aluminum AlloyPackage Content1 x XYZR Axis Linear Stage Table
- ACCURATE POSITION The 4Axes optical stage features micrometer heads for accurate position This manual displacement platform can be used for highprecision or mediumheavy production machinery inspection devices, precise positioning, quantitative movement.

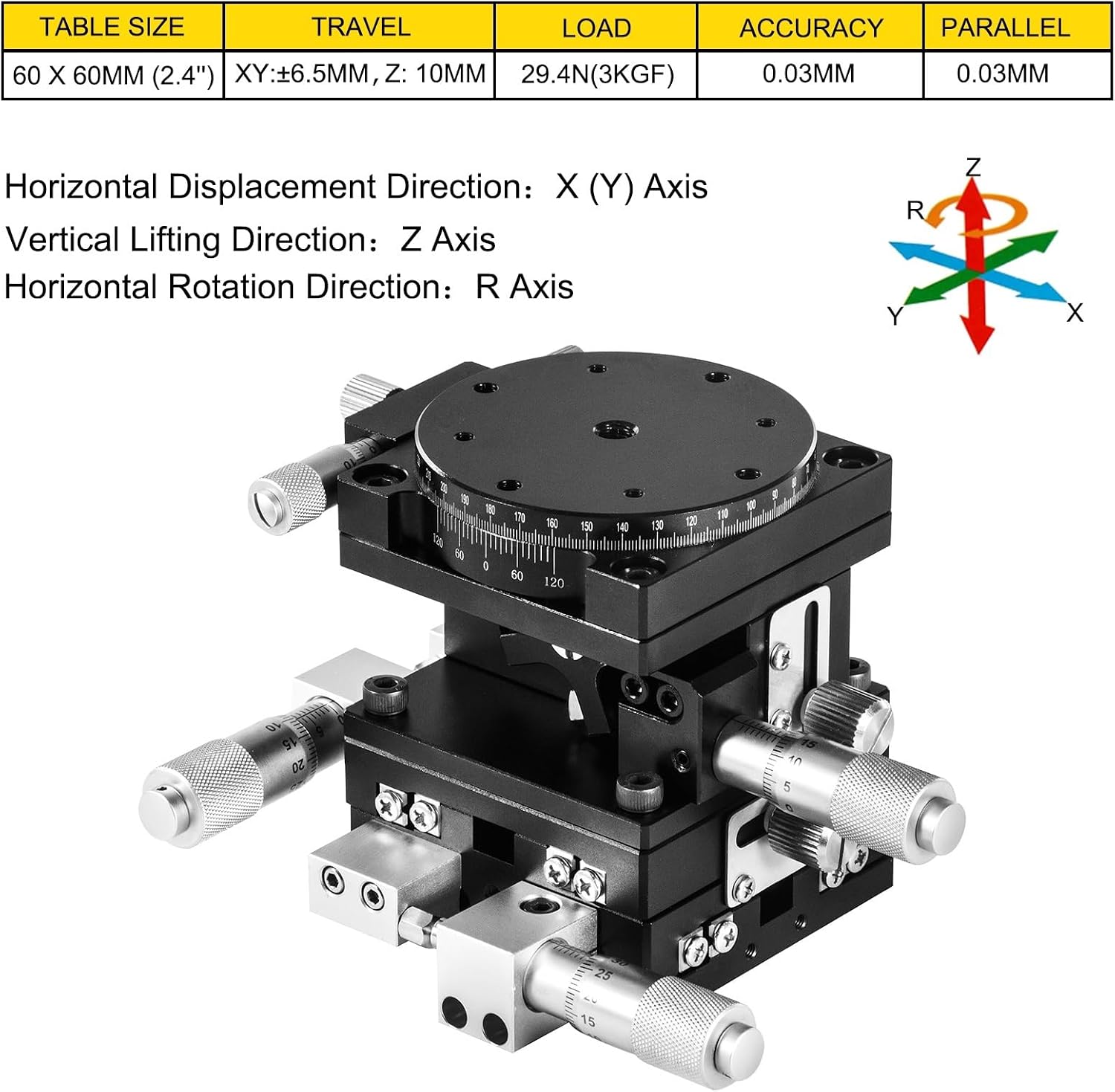

- XYZR AXIS LINEAR STAGE- The workbench size of this linear stage sliding table is 60 x 60 mm (2.36 inches)/90 x 90 mm (3.54 inches). The direction of movement: X, Y, Z, R axis. XY:±6.5 mm, Z: ±10 mm, R Axis: 360° (±5° fine-tuning). Load: 29.4 N (3kgf). Accuracy: 0.03 mm. Parallel: 0.03 mm/0.04 mm.

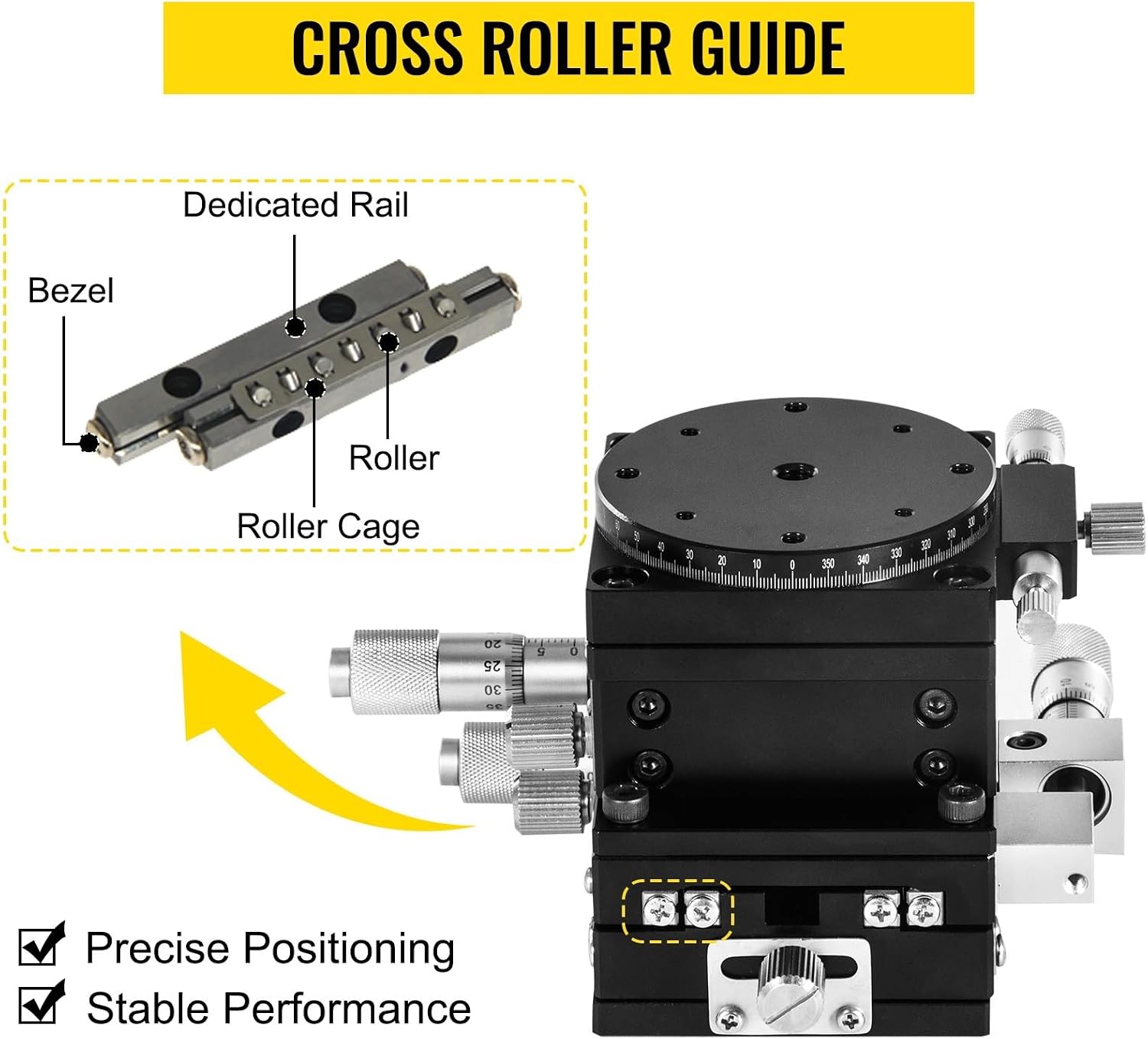

- CROSS ROLLER GUIDE- Using the intersection roller guide for high accuracy, smooth movement, this linear stage has the features of precision movement, precise positioning, stable performance, easy installation, and removal.
- PREMIUM MATERIAL- The slider is built with aluminum alloy with hard oxidation treatment, which is wear-resistant and corrosion-resistant and can adapt to different harsh environments. The stainless steel screw is processed with surface passivation treatment, rust-proof and fadeless.

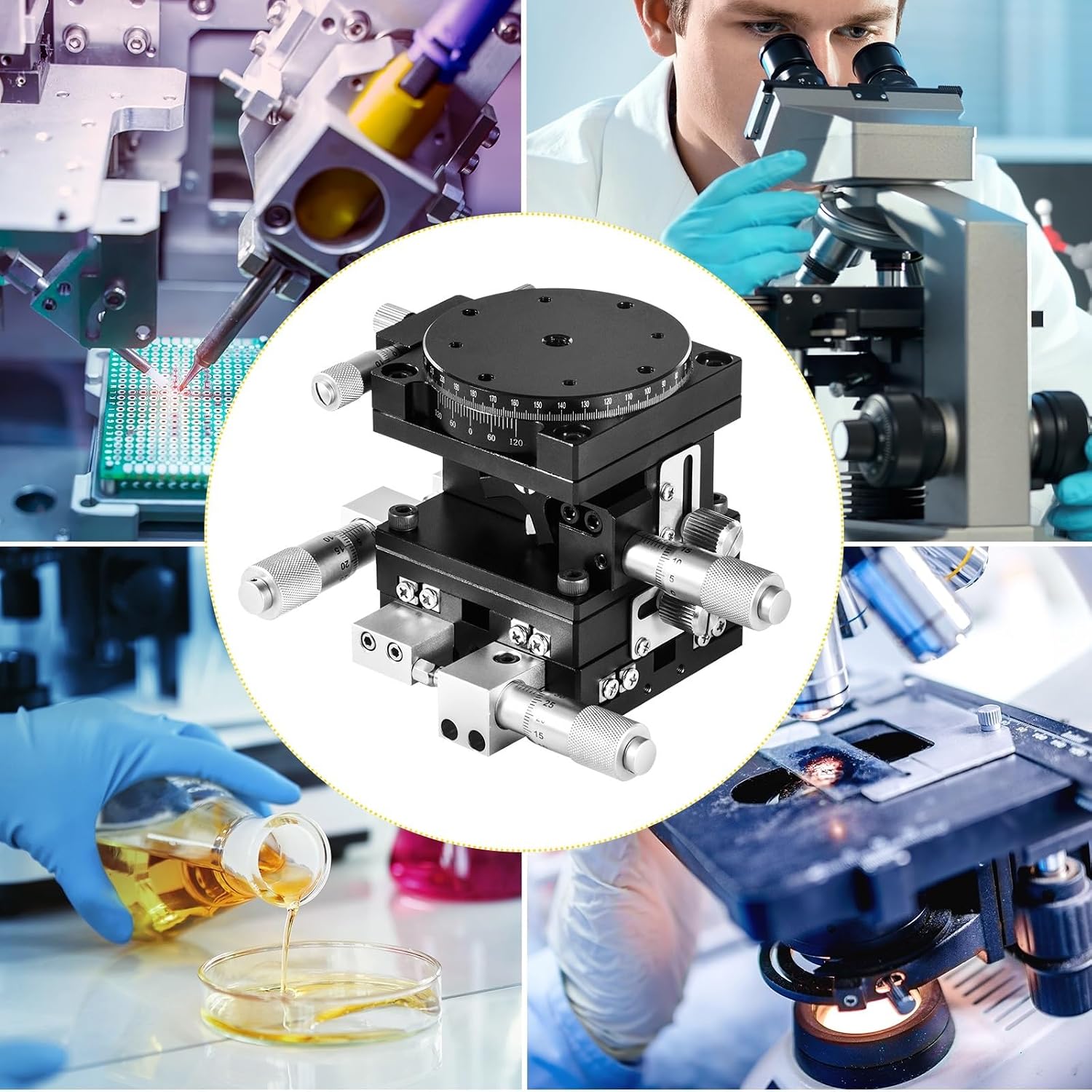

- VARIOUS APPLICATION- It is widely used in optical instruments and apparatus, measuring equipment, testing fixture, Semiconductor manufacturing equipment, testing machine, microscope, transporter, process machine, medical equipment, printing machine, etc.
| ASIN | B0CSMGV8VB |
|---|---|
| Size | 1 |
| Color | 90 X 90 Mm |
| Item Weight | 1.76 ounces |
| Part Number | 1005005321317783 |
| Manufacturer | LJIA |
| Power Source | ac |
| Number Of Pieces | 1 |
| Item model number | 1005005321317783 |
| Batteries Required | No |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
| Item Package Quantity | 1 |
