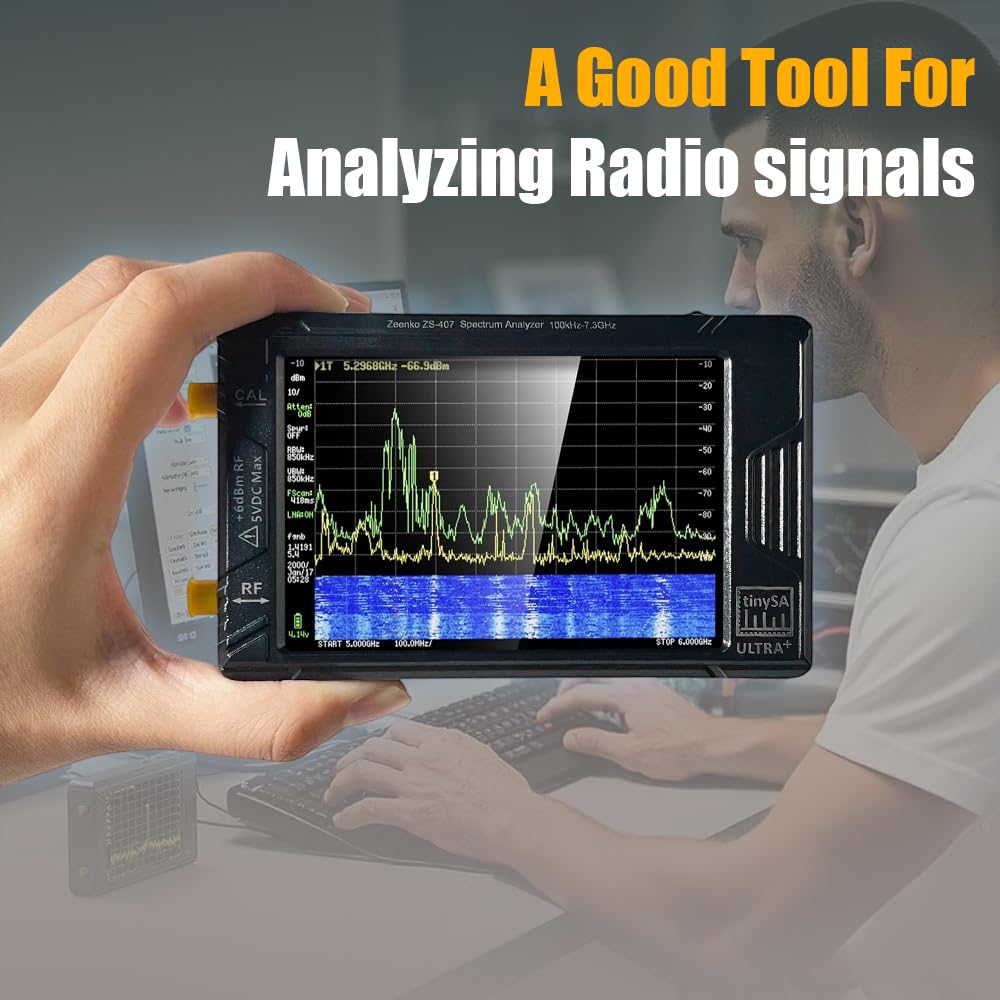

TTinySA Ultra+ ZS407 4-Inch Spectrum Analyzer (100kHz-7.3GHz) & Signal Generator (100kHz-900MHz), 2025 HW V0.5.4 Upgraded Version.
US$96.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by vtmorganhorse.org
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$96.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by vtmorganhorse.org
Free 30-day returns Details
Product details
| Management number | 220421249 | Release Date | 2026/05/03 | List Price | US$96.00 | Model Number | 220421249 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- The 2025 Upgraded TinySA Ultra+ ZS407 is a high-performance, portable spectrum analyzer featuring an ultra-wide frequency range of 100 kHz to 7.3 GHz. It is designed for precise signal capture and analysis across a broad spectrum, making it suitable for RF system development, satellite alignment, frequency verification, 5G NR, Wi-Fi 6E, and other wireless applications. The device also integrates a powerful signal generator, offering exceptional versatility for various testing scenarios.
- Ultra-Wide Frequency Range: Covers 100 kHz to 7.3 GHz (level calibrated up to 7.3 GHz, with the capability to observe signals up to 12 GHz). Standard mode operates from 100 kHz to 800/900 MHz, while ULTRA mode extends coverage up to 6 GHz/7.3 GHz. This expanded range ensures accurate measurements in complex RF environments.
- High-Gain Low-Noise Amplifier (LNA): Incorporates an internal LNA with a gain of up to 20 dB at 7.3 GHz. It achieves a Displayed Average Noise Level (DANL) as low as -169 dBm/Hz at 100 MHz (with LNA on), effectively enhancing weak signal reception and minimizing noise interference for superior measurement accuracy.
- 2-in-1 Signal Generator: Functions as a robust signal generator, producing.MF/HF/VHF sine waves from 100 kHz to 900 MHz.UHF square waves from 800/900 MHz to 6.3 GHz.Mixed/RF test signals from 4.4/6.3 GHz up to 7.3 GHz.This wide range of signal types enhances its utility for RF development, wireless communication debugging, and interference detection.
- Excellent Phase Noise Performance: Delivers outstanding signal purity with phase noise of -100 dBc/Hz at a 10 kHz offset and -103 dBc/Hz at a 100 kHz offset, which is crucial for high-precision RF measurement and evaluating communication system performance.
- Extended Battery Life: Powered by a built-in 3.7V 5000mAh Li-polymer rechargeable battery, it supports up to 10 hours of continuous operation, ideal for field work, prolonged testing, and outdoor use.
- PC Control & Data Management: Supports connectivity via USB and the TinySA app for PC control, enabling real-time data display, effortless data transfer, and in-depth analysis. A built-in 32GB microSD card facilitates convenient on-site data storage and sharing.
- User-Friendly Design: Boasts an intuitive interface, ESD protection, and the latest V0.5.4 hardware system for professional and stable performance. Its compact and portable design is perfect for technicians in various field environments.
| Item Weight | 13.3 ounces |
|---|---|
| Manufacturer | LUOYIILEA |
| Item model number | TinySA Ultra+ ZS407 |
| Product Dimensions | 4.53 x 2.83 x 0.86 inches |
