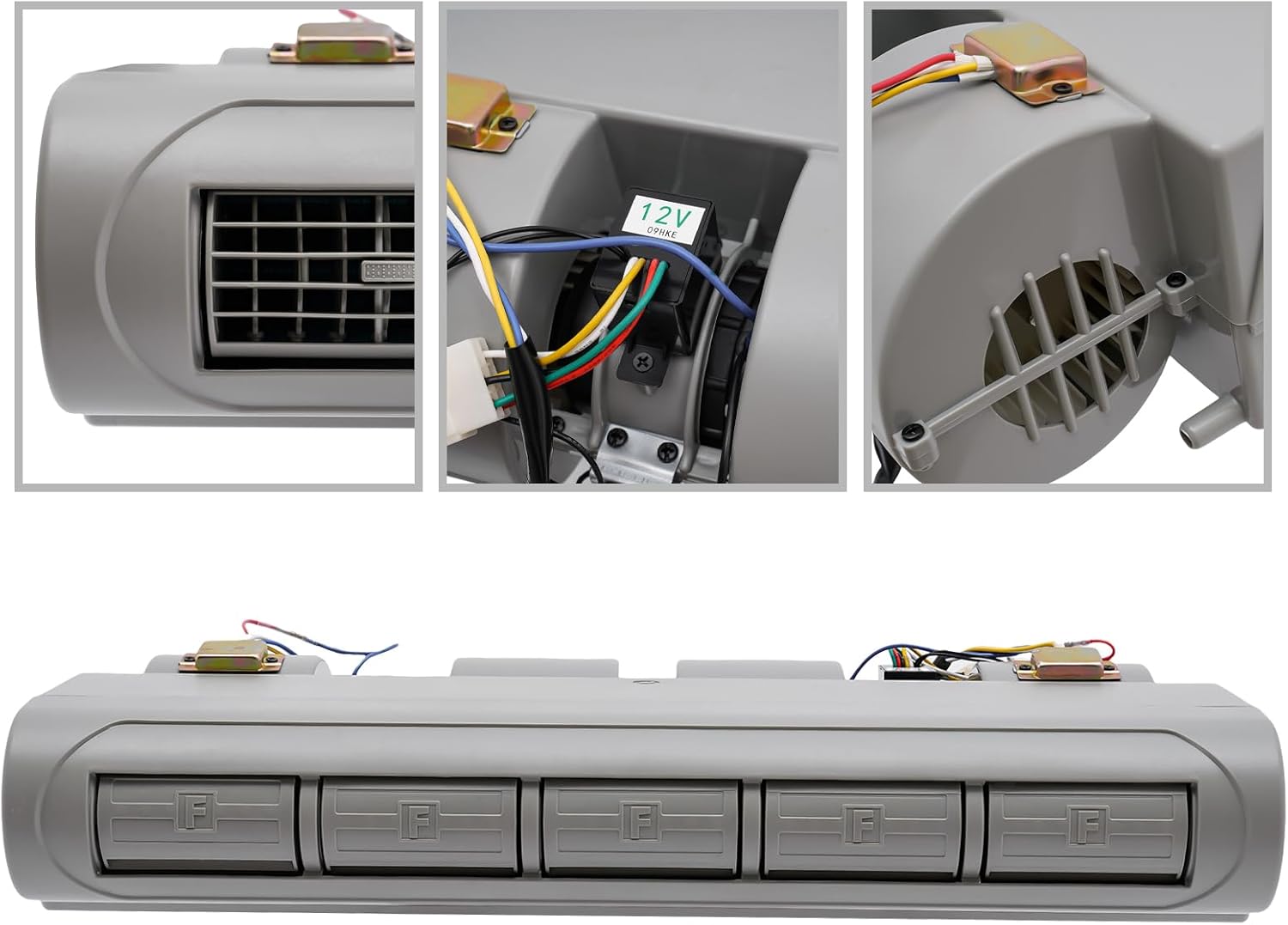

Universal Evaporator, 5 Shutters 12V Double Shaft Evaporator, 3600Rpm AC Evaporator with 3-Speed for Aars, Agricultural Vehicles, Engineering Vehicles

Specifications Condition: New Material: ABS, Aluminum Tubes Color: Grey Shape: Rectangular Motor Type: 2* Pure Copper Motor Motor Power: 2*80W Speed: 3600rpm Applicable Models: Universal Expansion Valve: 1.2T Features: 5 Shutters, Double Shaft Air Flow: 3 Gears (3 Wind Speeds) Cooling Capacity: 20697BTU Max. Air Volume: 1017m³/hr/598CFM Way of Use: Direct Replacement Voltage: 12V Product Size: 67.5*27.5*13cm/26.57*10.83*5.1inch Package Size: 74*34*18.5cm/29.1*13.4*7.3inch Gross Weight: 8kg/17.6lbs Net Weight: About 7.45kg/16.42lbs Notes 1.Please note that it is not a stand-alone unit and it needs to work with the compressor, condenser, and other components (all are not included). 2.Please note that there are water outlets on the left and right sides of the rear of the product. When installing, the water outlets should be located at a low level, otherwise, water leakage may occur. The recommended installation angle is 5°-35°. Please do not install horizontally, or vertically, with the water outlet facing upwards. Fits (As a Reference) Applicable Models: Universal (Especially For Aars, Agricultural Vehicles, Engineering Vehicles, etc.) Package Included 1* AC Evaporator 1* Drain Hose 1* T-Tube All Accessories For Assembly

• ◆【FITS (AS A REFERENCE)】Applicable Models: Universal (Especially For Aars, Agricultural Vehicles, Engineering Vehicles, etc.)
• ◆【DURABLE MATERIAL】 It is made of high-quality ABS and aluminum tubes, making it corrosion-resistant and wear-resistant and ensuring a long service life
• ◆【EXCELLENT PERFORMANCE】 5 shutters, strong air volume (598CFM), and large cooling capacity (20697BTU) enable this product to effectively dissipate the heat emitted by the engine, maintaining the normal operating temperature of the engine and ensuring safe driving
• ◆【SPECIFICATIONS】Applicable Models: Universal, Expansion Valve: 1.2T , Air Flow: 3 Gears (3 Wind Speeds)
• ◆【PROTECTIVE PACKAGE】 To prevent the product from being damaged during transportation, we packed it with foam to protect your products to the maximum extent possible
